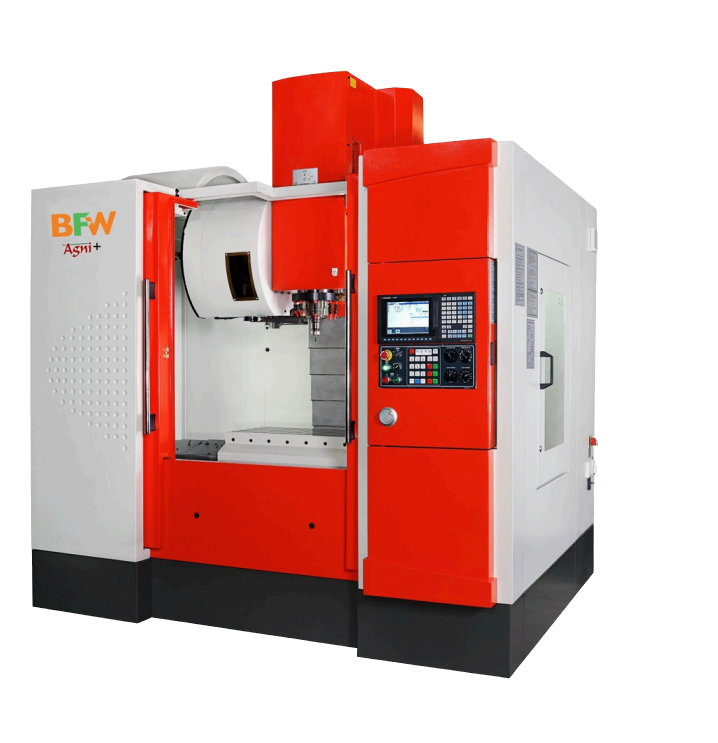

VERTICAL MACHINING CENTER BFW
| Specification | Details |
|---|---|
| Travels (Capacity) |
X-axis (Table longitudinal): 1050 mm Y-axis (Table cross travel): 610 mm Z-axis (Headstock / Vertical travel): 610 mm Spindle nose – table top clearance: 150 – 760 mm |
| Table |
Table size: 1250 × 600 mm T-slots: 5 slots / 18 mm size / 100 mm pitch Max load on table (standard): 1200 kg |
| Spindle & Axes |
Spindle taper: BT-40 (standard) Standard spindle speed: 6000 rpm Optional spindle speeds: 8000 rpm or 10000 rpm (depending on configuration) Spindle power (standard): 7.5 / 11 kW (cont./30-min rating) Spindle power (optional high-power): 11 / 15 kW |
| Feed Rates / Rapids |
Rapid traverse (X / Y / Z): 32 m/min Feed rate range (axis feed): 1 – 10,000 mm/min |
| Electrical / Installation Data |
Standard connected load: approx. 25 kVA (basic machine) Footprint / Floor space (L × B): 2850 × 2850 mm Basic machine weight: ~7500 kg |
.png)
35+ Years
INDUSTRY EXPERIENCE
35+ Years
INDUSTRY EXPERIENCE

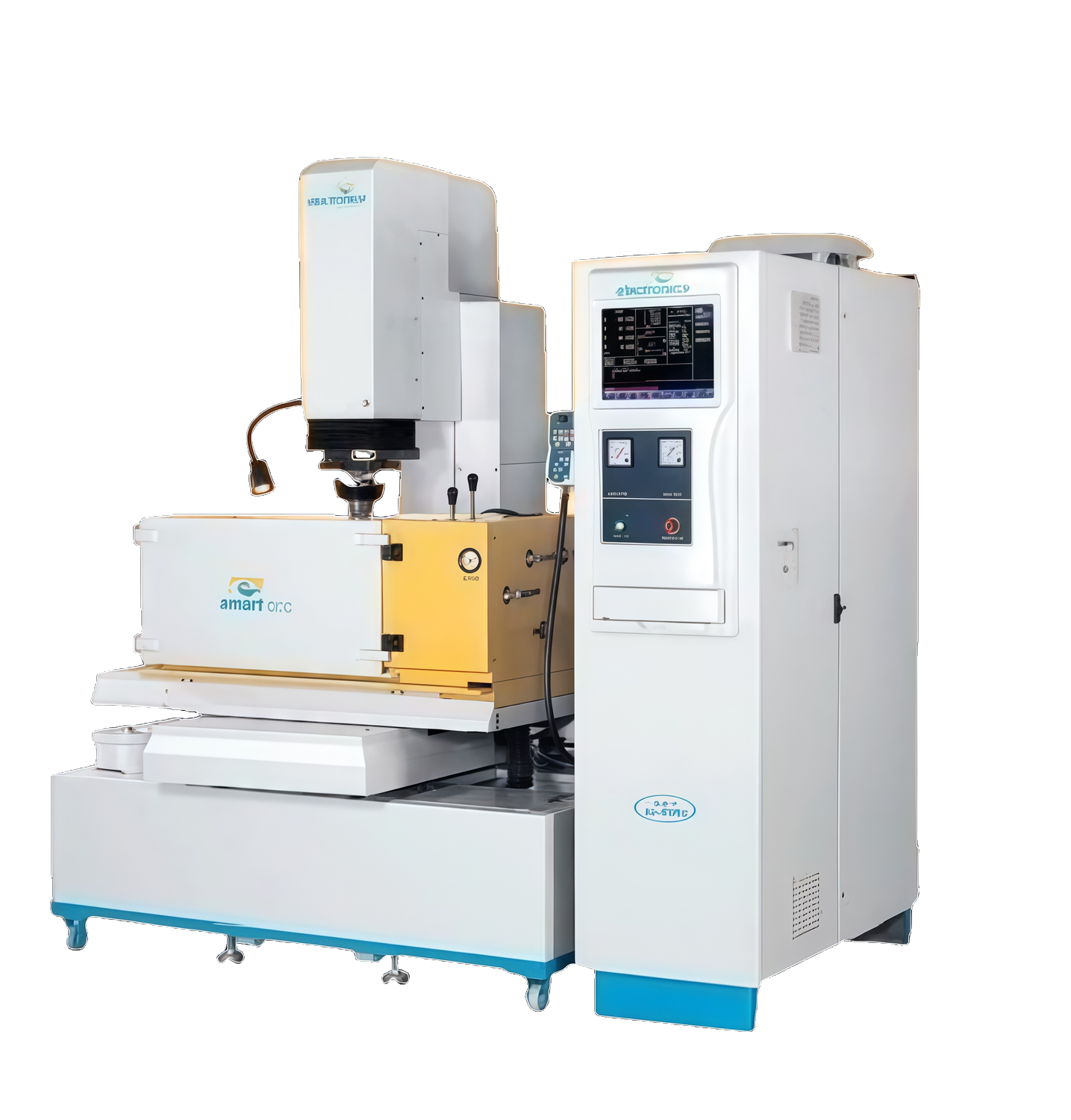

EDM-ELECTRONICA
| Specification | Details |
|---|---|
| Travels (Capacity) |
X-axis Travel: 300 mm Y-axis Travel: 200 mm Z-axis / Quill Travel: 250 mm |
| Table / Work Table |
Work Table Size: 550 × 350 mm Max permitted load on table: 175 kg |
| Spindle / EDM Head / Work Head |
(For EDM, “spindle” corresponds to the electrode / quill
system) Max electrode weight: 50 kg Max workpiece (or job) height above table: 250 mm |
| Feed rates / Machining (EDM performance) | Die-sinking / EDM feed / Z-axis servo control — variable (servo or DC-servo), precise control for spark discharge. |
| Dielectric / Electrical Specification, Power & Load |
Power Supply: 3-phase, 415 V AC, 50 Hz (standard for many
ZNC EDM machines) Connected Load: ~4 kVA (for smaller ZNC-type machine) Dielectric / Oil Tank Capacity: often ~340 L (varies with model) |

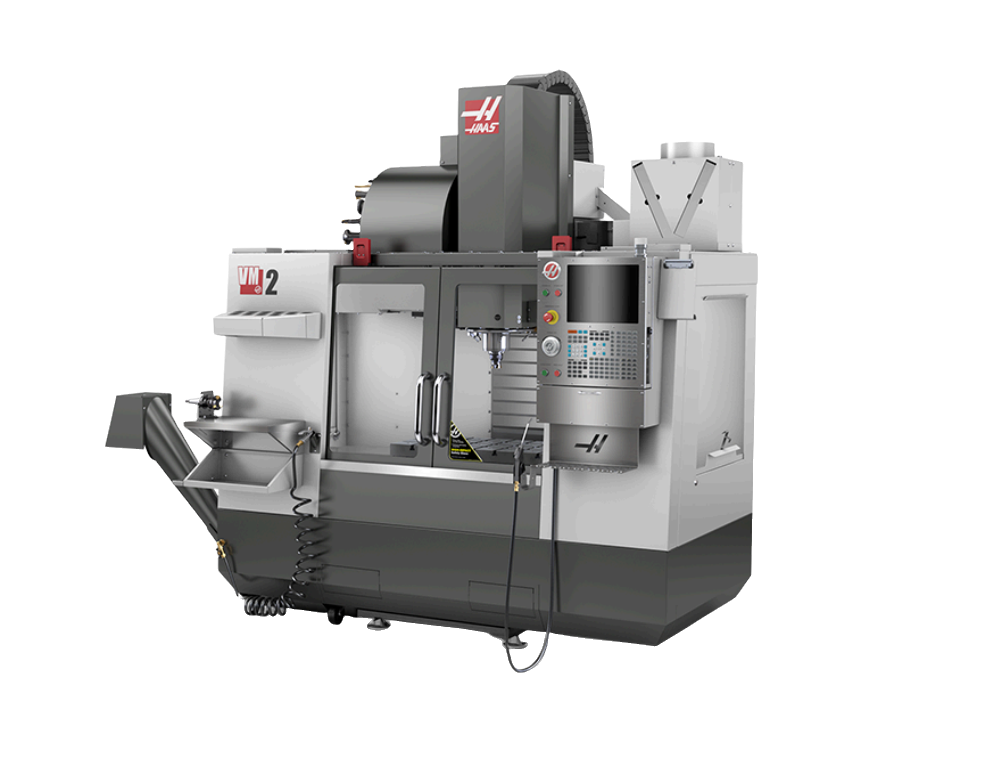

VERTICAL MACHINING CENTER HASS
| Specification | Details |
|---|---|
| Travels |
X-Axis Travel: 406 mm (16") Y-Axis Travel: 305 mm (12") Z-Axis Travel: 254 mm (10") |
| Spindle |
Spindle Speed: 10,000 rpm Spindle Power: 15 hp (11.2 kW) Spindle Taper: BT-40 |
| Table |
Table Size: 914 × 305 mm (36" × 12") Max. Table load: 227 kg |
| Feedrates |
Max Cutting Feedrate: 7.6 m/min (300 ipm) Max Rapid Feedrate: 30 m/min (1200 ipm) |
| Electrical Specification |
Power Requirement: 3-Phase 360–480 VAC Full Load Amps: 40 A Coolant Capacity: 170 liters |
.png)
35+ Years
INDUSTRY EXPERIENCE
.png)
35+ Years
INDUSTRY EXPERIENCE

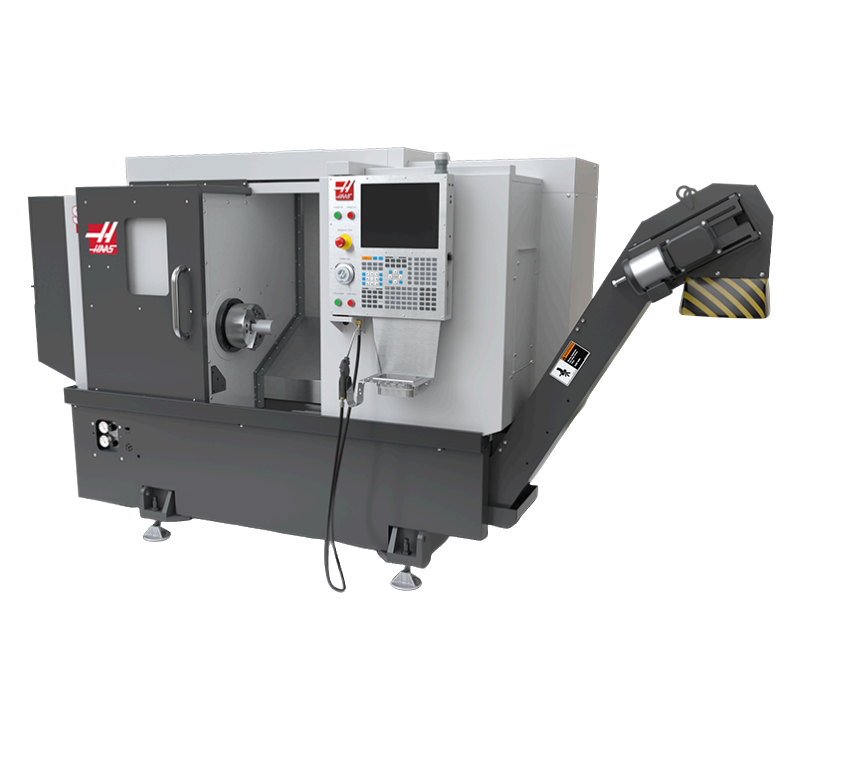

TURN MILL CENTER HAAS
| Specification | Technical Details |
|---|---|
| Travels & Capacity | X: 200mm | Y: ±51mm | Z: 406mm Max Part Swing: 419mm | Bar: 44mm |
| Spindle Performance | Speed: 6000 rpm | Power: 15.0 hp (11.2 kW) Nose: A2-5 | Spindle Bore: 58.7mm |
| Tooling & Turret | 12-station turret (BMT45/VDI style) Max Cutting Diameter: 279mm |
| Feed Rates | Rapids X/Y: 12 m/min | Z: 30.5 m/min High-precision motion control |
| Installation | Voltage: 220V/440V 3-Phase | Coolant: 114L Shipping Weight: ~3584 kg |

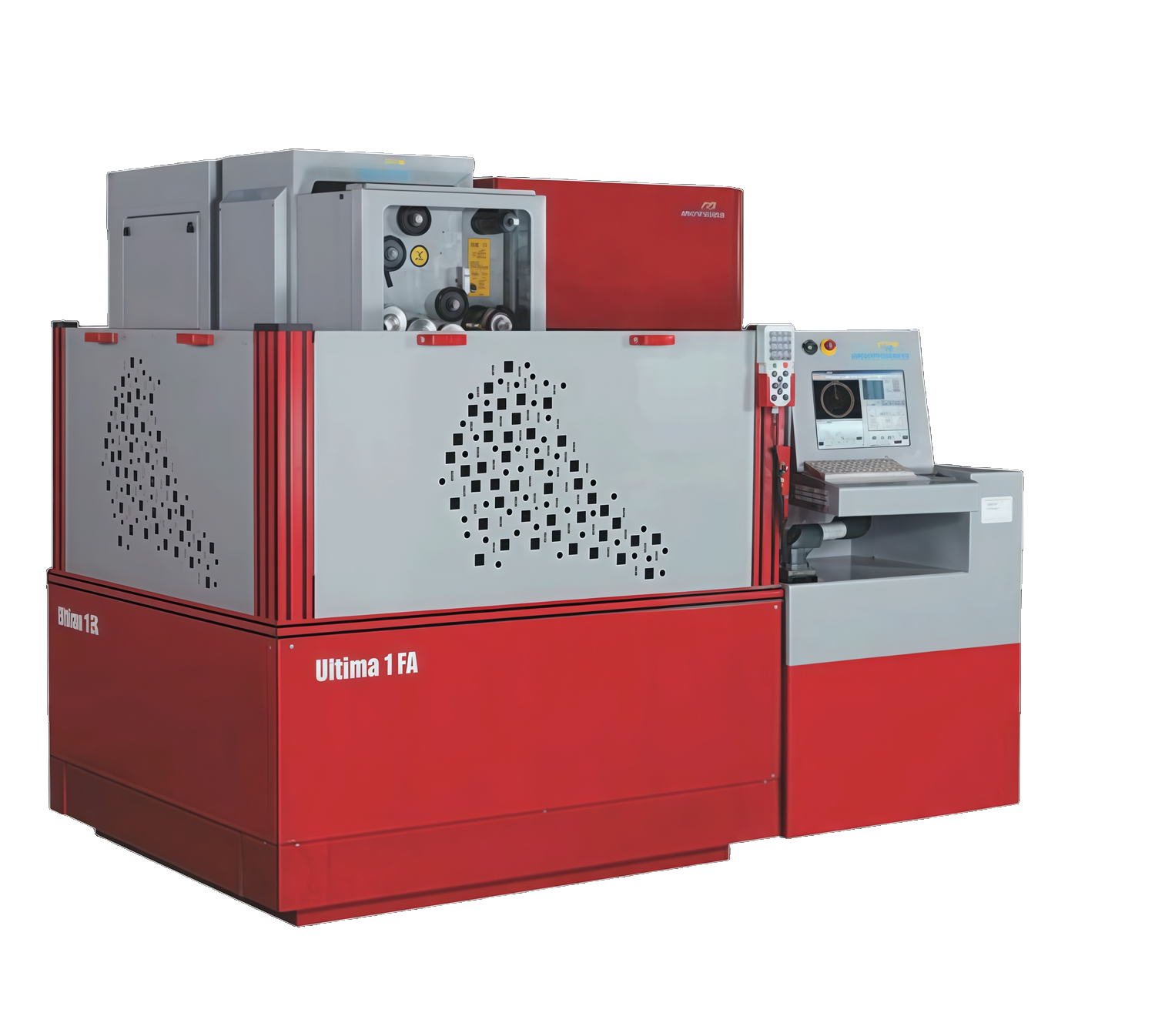

ELECTRONICA WIRE-CUT
| Specification | Details |
|---|---|
| Travels (X × Y) | Ultima 0F: 320×220mm | 1F: 500×300mm | 2F: 600×400mm |
| Work Table | Range from 655×350mm to 1145×800mm (3F) |
| EDM Head | 5-Axis Control (X,Y,U,V,Z) | Standard Wire: Ø 0.25 mm |
| Performance | Max Speed: 200 mm²/min | Precision Ball-screw motion |
| Power & Tank | 3-Phase 415V | ~11 kVA | 500L De-ionised water tank |
35+ Years
INDUSTRY EXPERIENCE
35 YEARS OF WORKING EXPERIENCE
WITH COMPANIES
OSS specializes die-casting tools with advanced machinery across 40,000 sq. ft., delivering precision, efficiency, and time-bound solutions for diverse tooling requirements.
Common Client Queries
What does OSS specialize in? +
OSS specializes die-casting tools for domestic and international markets with high precision and efficiency.
What facilities does OSS have? +
OSS operates advanced machines within a 40,000 sq. ft. facility, enabling efficient handling of diverse tooling and manufacturing requirements.
Why choose OSS as a partner? +
Newly implemented and skilled professionals, OSS delivers reliable, precise, and time-bound tooling solutions meeting global industry standards.
